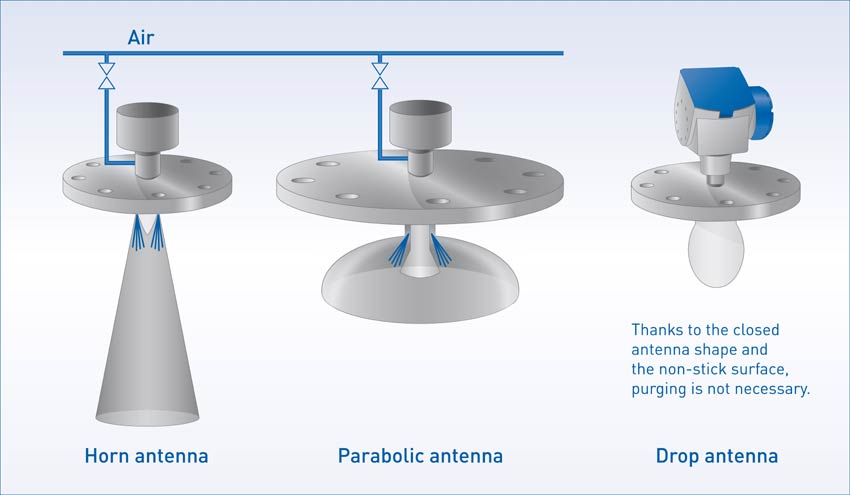

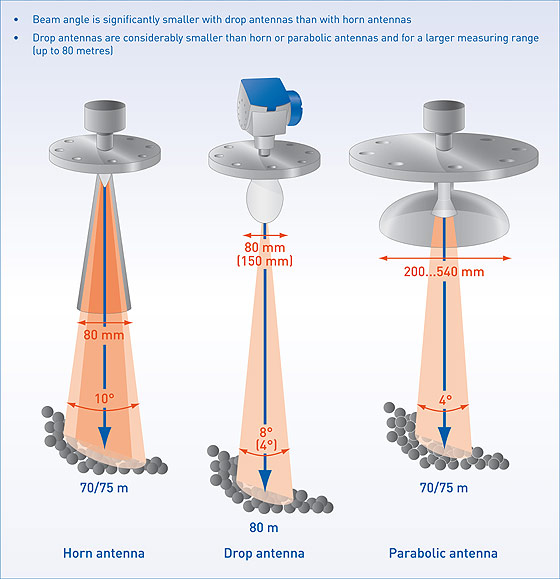

OPTIWAVE 6300 C - the radar solution for solids   OPTIWAVE 6300 C   Advantages of drop antennas over horn or parabolic antennas Minimise operating expense and costs PP or PTFE Drop antenna: shape prevents product build-up in dusty applications No purging device required (which also means no need for additional piping system featuring a valve and control system) Maintenance-free and no outlay for purging air Simple installation and start-up Small and large at the same time Radar beam angle is considerably more focused with drop antennas than it is with horn antennas: ideal for narrow silos and large measuring ranges Drop antennas are considerably smaller than horn or parabolic antennas and thus easier to install back to top Level measurement of solids: The bottom line Device Device price Pipeline for purging air Purging air Mechanical connection Horn antenna Parabolic antenna Drop antenna --- --- back to top All-in-one signal converter Minimise operating expense and costs - One single signal converter for any measuring range - Standard version: measuring range up to 80 metres - Directly accessible graphic touchscreen/wizard back to top Further information > Solid applications in practice > KROHNE Website > Further information / set up an appointment back to top Managing Directors: Dr. Attila Bilgic, Ingo Wald, Main office: Duisburg HRB 21666 Court of register: Local court Duisburg, VAT ID No.: DE119560126 © 2012: KROHNE Duisburg product marketing is responsible for the contents of this newsletter. Further publication, copying and quotation are allowed only with reference to the source.
